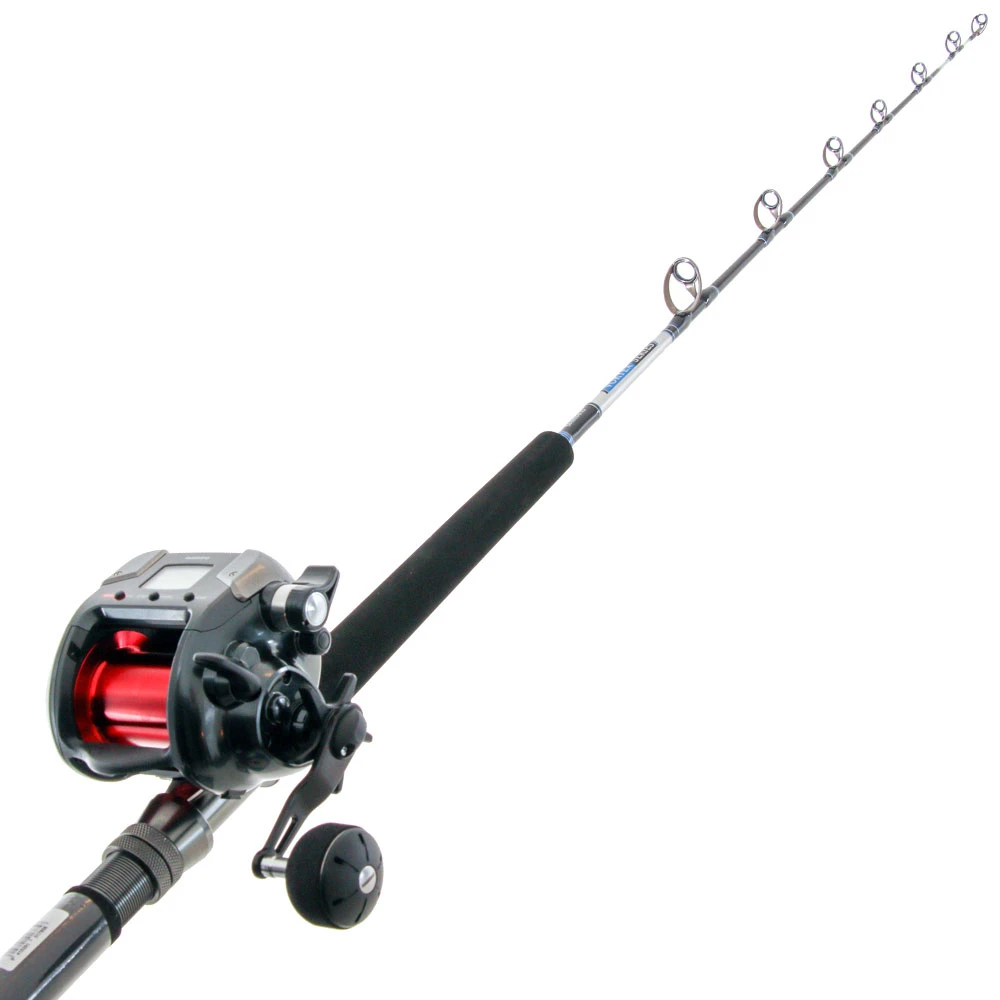

Shimano DDM Plays 4000 Vortex Deepwater Electric Combo With Braid 5ft 7in 15-24kg 1pc

The combo that does the heavy lifting for you

Fighting monster deep-water species is challenging even for
experienced fishos. But with the right gear, you’ll enjoy catching
those big fish. The Shimano DDM Plays 4000 Vortex Deepwater Electric Combo is specially
matched to give you the power to win big fights! Plus it comes with PowerPro High-Visibility Yellow Braid – ready to fish.

The Reel

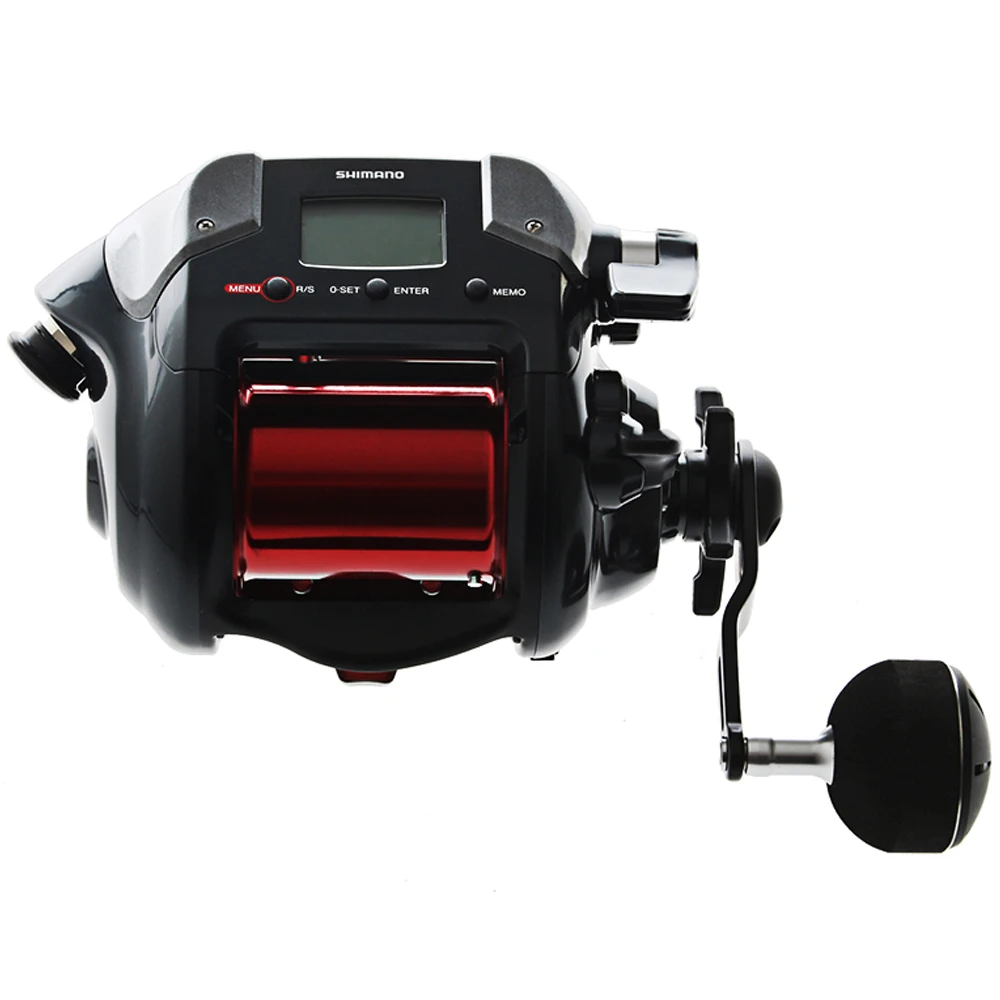

The new and improved Shimano Dendou Maru Plays 4000
Electric Reel is now designed with HAGANE BODY technology
meaning more rigid tolerances and a stronger frame that reduces
twist under load. The Plays 4000 also features the Heat Free System
that greatly reduces heat under load and keeps the reel performing.
The large Fine Dot LCD screen improves readibility in most light
conditions. Precision S-ARB bearings and Super Free Spool
technology to reduce friction and heat when dropping baits in to
the benthos.

LCD On-Screen Display
Large LCD Display with on-screen information such as program,
lineout, power and other relevant information.

HAGANE Body
HAGANE Body means this reel has a high rigidity and zero twist. The
body stiffness and impact resistance virtually eliminates body
flexing. The result transforms the anglers actions directly into
cranking power. It’s efficiency through strength.

Shielded Anti-Reverse Bearings
These bearings have been through the same process as the A-RB
bearings, but feature shields on both sides of the bearings that
reduce the possibility of salt or sand inhibiting the bearings’
rotation.

Super Free
The Super Free bearing-supported pinion gear system (SF) was
designed to eliminate friction on the spool shaft during the cast.
In standard baitcasting reels, when the clutch bar is pressed down,
the pinion gear is freed and can actually drag on the spool shaft,
creating friction and limiting the length of the cast. With SF, the
pinion gear is supported by a ball bearing and when the clutch is
disengaged the pinion hear and spool shaft are kept in precise
alignment. The result is zero friction on the spool shaft for
increased freespool.

The Rod
The Shimano Vortex Overhead Rod is a dynamic and
versatile rod that has been designed to fit directly in to the kiwi
market. It features a Power-Carbon blank specially designed to take
the knocks, an integrated glass tip so as to retain sensitivity
from the bite to the fight and also enhance overall performance
without compromise. Great for trolling or deep dropping. The
Shimano Vortex Overhead Rod has been designed by
kiwi fishos for kiwi fishos – it’s as simple as that!

The Braid
A blend of old-fashioned fishing knowledge and the newest
technologies, the PowerPro High-Visibility Yellow
Braid is strong, smooth and sensitive. It’s made with
ultra-strong braided Spectra Fiber and Enhanced Body Technology for
less wind knots and better retrieves.

Shimano Dendou Maru Plays 4000 Electric Reel
Features:

• Hagane Body
• Carbon Drag
• Heat Free System
• Jigging Mode
• Memo
• Auto Stop
• Alarm
• Maximum Winding Strength: 50kg
• Maximum Winding Speed: 170m

Shimano Dendou Maru Plays 4000 Electric Reel
Specifications:

• Model: PLAYS4000
• Retrieve per Crank: 68cm
• Ball Bearings: 2 SA-RB
• Max Drag: 15kg/147.0N
• Drag Type: STAR
• Weight: 1230g
• Line Capacity: PE #6 (60lb)-500m, #8 (80lb)-300m,
  #10(100lb)-270m
• PowerPro Capacity: 60lbs (550yds)
• Gear Ratio: 3.2:1
• DC: 12v

Note: JDM (Japanese Domestic Market) Shimano
Electric Reels don’t come with English manual as they are
originally intended to be sold for the Japanese market only.
Battery sold separately.

Shimano Vortex Overhead Rod Specifications:

• Product Code: VTX57BT1524NZ
• Pieces: 1
• Line Weight: 15-24 kg
• Lure Weight: N/A
• Blank Type: Power-Carbon
• Grip Assembly: EVA
• Length: 1.77 m / 5’7inch ft
• Guide Type: Zirconia Guides
• Action: Medium
• Gimbal Type: Alloy Gimbal
• Reel Seat: Alloy

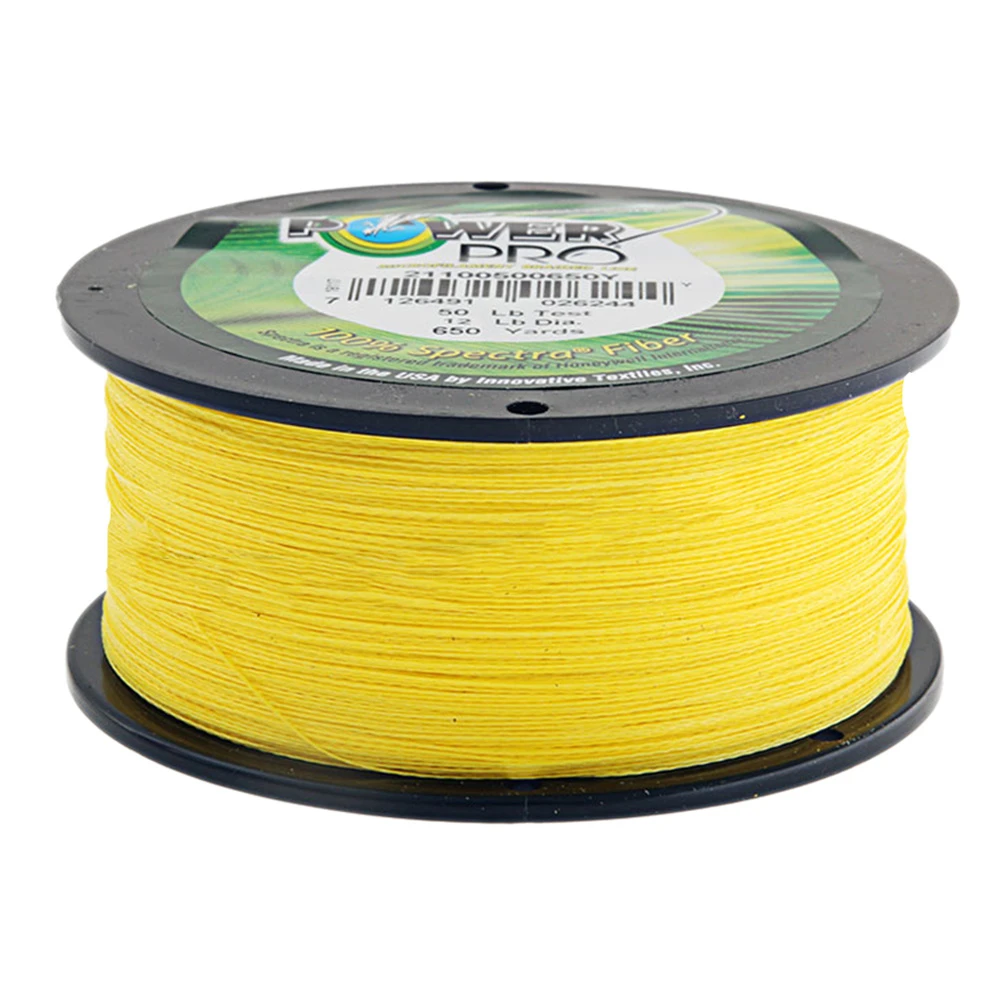

PowerPro High-Visibility Yellow Braid
Features:

• Rounder, smoother, thinner, stronger
• Blend of old-fashioned fishing knowledge and the newest
  technologies
• Ultra-strong braided Spectra Fiber
• Enhanced Body Technology for less wind knots and better retrieves
• Arbour tape included
• Colour: Hi-Vis Yellow
• Length: 650yd
• Rating: 50lb
• Diameter: 0.36mm
